Because the Behringer is a complex device with numerous functions, its user’s manual is extensive, and can be somewhat daunting. For those owners who do not have the time, patience, or inclination to read it, there is a single page in Roger’s speakers’ manual that gives simple, quick, and easy instructions that make it a snap to connect the crossover and make adjustments.
This seems like a good spot for a slight digression on active crossovers. I should first point out that the benefits of active crossovers apply to any speaker with a woofer, not just electrostatic hybrid models. Woofers are by necessity large, with high mass. One of the main factors influencing their transient response is not their ability to start but rather, their ability to stop. Imagine a musical signal with two transients, separated by a very short interval. In response to the first transient the woofer begins to move but as it moves back it overshoots its mark due to inertia, and is therefore unable to respond to the second transient. Accordingly, it is important to prevent — or at least, minimize — the overshoot. Fortunately, there is a straightforward way to do so.
As the woofer moves it generates an electrical signal, termed “back EMF,” which as its name implies, is directed back toward the amplifier. The amplifier resists the back EMF, and thus serves as a “brake” for the woofer. “Damping factor” is a measure of an amplifier’s ability to provide this braking function, and thus its ability to control the woofer. Damping factor is a function of an amp’s output impedance, which explains why solid state amps typically provide better bass control than do tube amps: In most cases, solid state amps have lower output impedance — and thus higher damping factors — than do most tube amps.
Returning to the benefits of active crossovers: A typical solid state amplifier might have a damping factor of between 50 and 100. This is very high and in principle, would provide excellent control of the woofer. But most speakers have a passive cross-over situated between the amplifier and the woofer so, as Hamlet said, there’s the rub. The speaker’s back EMF does not “see” the amplifier but rather, it sees the crossover. An unfortunate consequence of this arrangement is that the damping factor is reduced, usually dramatically. Instead of the amp’s high damping factor, the woofer sees a damping factor as low as only 2 or 3! An excellent discussion of this topic may be found here: http://sound.westhost.com/biamp-vs-passive.htm. So the amplifier’s very high damping factor is metaphorically cut off at the knees. As a result the woofer is not properly controlled, and we end up with sloppy bass.
The obvious solution to this dilemma is to get the crossover out of the way. One does this by using an active crossover which inserts in the signal chain before the amplifier, rather than after it. In this situation, when the woofer “looks back” it sees the amplifier and its high damping factor, rather than the lower damping factor of a passive crossover. An added benefit of an active crossover is that it provides, at a minimum, the ability to optimize the bass volume for the particular room and tastes of the listener. Though in fairness, a speaker with a passive crossover can be designed so as to provide this as well, though it is less common than with active crossovers.
Spreading the Word — On Dispersion

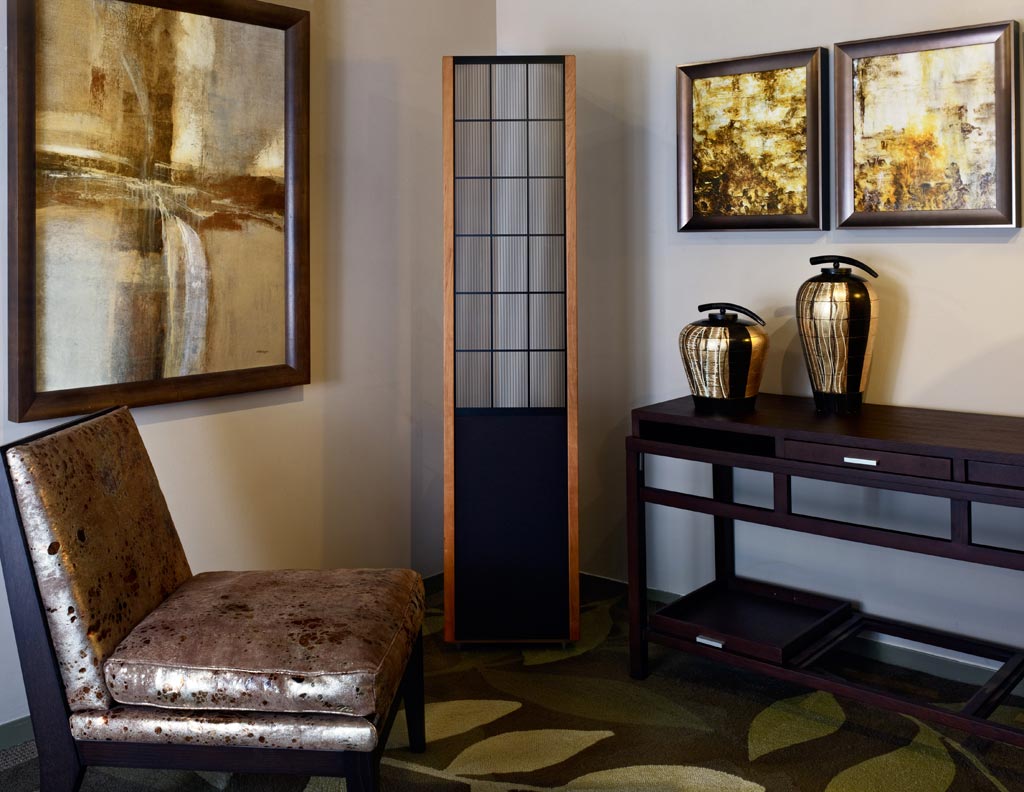

As noted earlier, the Model 10’s use a flat electrostat panel. By their nature such panels “beam,” and this has been the subject of considerable controversy. Studies by Floyd Toole and Sean Olive of Harmon have shown listener’s preference for speakers with an even power response, i.e., an off-axis response which is similar in frequency response to the on-axis response. But as Roger pointed out to me in one of our many discussions, such studies did not compare speakers with a wide dispersion and even power spectrum, with speakers with narrow dispersion. A sad fact about which many, if not most audiophiles live in denial, is that the room is one of the most important determinants of the sound that reaches our ear. I can’t begin to count the number of times a fellow audiophile has told me how great his DAC, or speakers, or preamp, or amp, is, but then explains that I can’t hear this greatness because of his room. Nor can I count the number of audiophiles who will spend many thousands of dollars on new interconnects, power cords, and even, I kid you not, wall sockets, but will not so much as add some absorption to the first reflection points. Anyone who doubts the contribution of the room need only listen to a pair of headphones. Even modestly priced models will provide greater clarity than most audiophiles will ever hear from their mega-buck systems, and the reason for this is simple: Headphones take the room out of the equation.
But for a variety of legitimate reasons, many of us prefer to not listen to headphones, or at least, not exclusively so. So how can we get around the negative influence of a listening room? If we’re fortunate, we can have a well-designed and well-treated room. But such rooms are expensive and even if money were no object, for most it is simply not possible for reasons of domestic tranquility. So how about if instead, we use speakers that allow us to hear far more of the direct sound, and far less of the indirect, i.e., room-induced sound? Enter the Sanders Sound Model 10 speakers. Interested readers are directed to Roger’s “Dispersion White Paper” on his website.
Because the Model 10’s have narrow dispersion, the energy reaching the listener from the walls is greatly attenuated compared to that reaching the listener directly. A legitimate question, and in fact one I myself asked, relates to the speakers being dipoles: Since as much energy fires out the back — and thus towards the walls — as out the front, wouldn’t this negate the benefits of the narrow dispersion? The explanation lies in the fact that for optimum performance, the Sounders Sound speakers must be aimed directly at the listener. Because of this, the rear wave hits the rear or side wall at a sharp angle, from which it is directed at an equivalent angle toward another wall, and so on. By the time the sound reaches the listener’s ears it is greatly attenuated, and temporally delayed as compared to the direct sound. Under such circumstances our ear/brain can and does distinguish the direct and reflected sounds as separate and distinct, rather than smearing them as occurs if the reflected sound arrives soon after the direct, as occurs with wide dispersion speakers.
