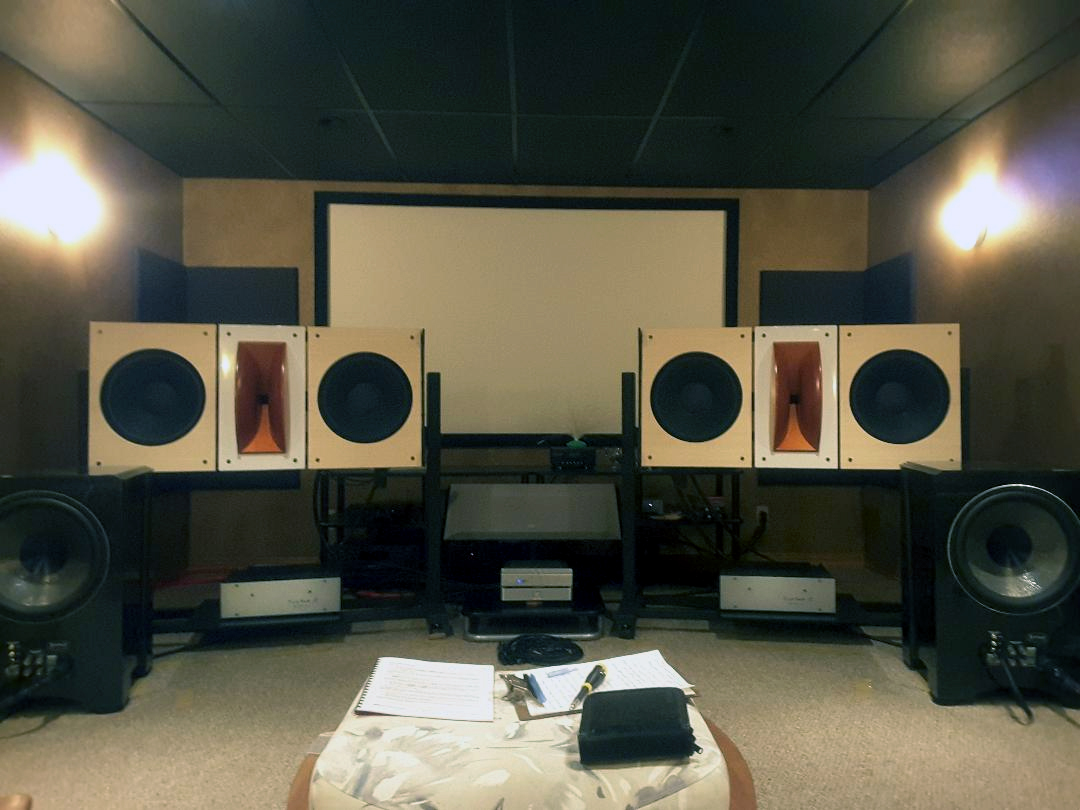

Landscape orientation!
Dagogo readers who have followed my writing over the years have seen that occasionally I dabble in an alternative setup I call Landscape Orientation. It’s quite simple; I turn speakers sideways to obtain a slightly lower but much wider soundstage. I discuss this at length in a second article on the Daedalus Ulysses speaker found here at Dagogo.com. I recently had opportunity to work with the Magnepan .7 in Landscape orientation, and while it was good, the result could not compare to the Trio15 Horn1 in Landscape.
A disclaimer might be in order at this juncture. Some manufacturers freak when I do anything that is not by the book – that is, completely benign when it comes to marketing and sales. Turning a speaker on its side is politically incorrect in the audiophile world, even though studios do this constantly. Just as there are hecklers against aftermarket cables who have never spent a penny on them and never lifted a finger to try them, so also there are people who would make a snap judgment that the speaker is no good if someone has to turn it on its side to make it sound good. Let’s not be so foolish. I am not sharing a fix for the speaker, but another way to enjoy it that is outside the box. The glory of the Horn1 is untarnished by my experimentation. In fact, to me it is magnified.
Do I need to go one step further and clarify that I do not think you need to turn the speaker sideways in order to get full enjoyment from it? Perhaps I do. I thoroughly enjoy the Horn1 in whatever orientation it resides; I’m simply letting you in on Doug Schroeder’s Wide World of Audio Sports! I could keep this all under wraps, discussing nothing of it outside my close listening circle, keeping it mum from industry insiders, and never posting images of it. But what fun would that be? When I have the equivalent capability of bungee jumping as an alternative to, say, parachuting, why would I not enthuse about it? I thank Ze’ev Schlik and Thomas Sulentic for being open-minded, the kind of open-mindedness that leads to a fabulous product such as the Trio15. I told them the Landscape orientation would not be the predominant feature of the review, and I remind the reader that while I enthuse about it, I find the Portrait (upright) performance as compelling. I simply want lots of variety in my experience as an audiophile and I pursue it aggressively, a DIY impulse writ large on a system scale. So, forward we go!
I consider the outcome of using the Horn1 as a Landscape speaker to be one of my crowning achievements as an audiophile over the past 35 years, partly because the custom Sound Anchor stands that were made for me were originally conceived for holding dynamic speakers, but have been adaptable for panel speakers as well as for the Horn1. In order to secure the open-framed Horn1 to the stand, I had to rotate the completely adjustable heavy arms of the upper cross-member until the flat 3” wide supports were in a vertical position. The open frame of the Horn1 is slipped over these supports turned skyward, which act like posts to hang the speaker off one side of the stand. (The hollow steel posts of the stand are filled and the entire stand weighs in at about 100 pounds.) The side of the speaker’s metal frame rests against the cross-member itself. Think of it like hanging a picture; the nail holds the anchor point and the bulk of the picture rests against the wall. In this case the back spine of the speaker is held in place by the vertical supports and the speaker rests against the length of the cross-member. Perhaps I should just show you a picture, you know, worth a thousand words.
The twist to the story, dear reader, is this – you have a Landscape speaker when you buy the Horn1! Does that statement confuse you? Look at the orientation of the horn in a normal setup, it is horizontal. A secret of why the Horn1 sounds so good is that the soundstage is widened to present a captivatingly large, very broad image much more so than typical floor standing speakers. That is the undeclared reason why the Horn1 is so captivating. The Horn1, then, is naturally a Landscape speaker by design. Therefore, owners of the Horn1 get to enjoy something I have been pursuing for years.
Why, then, would I turn the speaker and ruin the Landscape orientation experience? Perhaps you might believe me if I told you that it is every bit as enchanting when the horn driver is turned to a vertical orientation. Recall from seeing pictures of horn speakers at shows that some designers orient the mouths of the horn vertically and some horizontally. Some manufacturers do both. Case in point: Volti Audio, which offers the horizontally oriented Vittora and the vertically oriented Alura.
One of my audiophile friends owns the Alura. He heard the Landscape oriented Horn1 (on the stand with the horn itself vertical) and was as astounded as I was because it mimicked much of the character of the Alura. I’m not saying they sounded the same, just that the shaping of the soundstage and the dynamics of the two different horn systems were uncannily similar. Live music with this orientation was perhaps the most gratifying aspect of this setup. I put the Legacy XTREME XD Subwoofers alongside the Horn1 and when the six 15” woofers combined firing power with the 1” compression horn, the reproduction was convincing. There may be one out of a hundred fans of the Horn1 who might opt for pursuing the Landscape experience as I do. If so, intrepid sonic explorers, contact me and I will share some tips with you. The Horn1 is a marvelous thing when run conventionally, but doubles its enchantment when the option of Landscape orientation is added.
Judgment of value
In my next article I will discuss the active crossover operation of the Horn1, so while this is a definitive assessment, it is only so for the passive operation of the speaker. I have no doubt that other just as lovely experiences can be obtained via the PAP-C1 active crossver.
Meanwhile, let us consider the ultimate money question; is the Horn1 a great speaker in terms of price to performance? Yes, in some respects more of a “value-able” speaker than a Magnepan or Vandersteen. You know those names, as does nearly every hobbyist. What you don’t know is that in several parameters the Horn1 outperforms anything from the mid Vandersteen or Magnepan lines down.
Concurrently to this review, I was finishing up an article on the Magnepan .7, the second from the bottom of the Maggie lineup. It’s a good speaker, but not at the same level as the Horn1. Compared to the Horn1, the .7i sounded congested, anemic, lifeless, bass shy – in brief, very unappealing. Unless money rules your decisions on what speaker to buy, preference toward the Horn1 was overwhelming, perhaps more so than any comparison between speakers in 12 years of reviewing. The Horn1 made the Maggie sound like it belongs in a tertiary rig, not the main listening system. Defenders of Magnepan Truth please do not bother arguing with me on this; I’m not interested.
How did the Horn1 stand up to my initial impression that it was more precise than the Kingsound King III electrostatic speaker? After I finished with the rounds of system building and listening for the Horn1, the next speaker I put up was the King III. I maxed it out with the best rig I had to date, but it showed no better elucidation than the Horn1. The soundstage was obviously different, and as might be expected, it has a more generous midrange, but the dynamics were no better. In short, a truly great panel speaker did not upstage the Horn1.
The PureAudioProject website shows several systems where manufacturers have chosen the Horn1 as a reference with their components. What, a $7K speaker with uber-electronics? In the case of the Horn1, yes! My four critic/friends who are unafraid to rate my rigs all placed the performance of the Horn1 as among the most arresting sounds they had ever heard in my room. A couple of them ruled it flat out the finest performance ever. Not bad for a supposedly DIY speaker.
It’s just different, and wonderfully so!
Different can be a good thing or a bad thing. People stuck on preconceptions of what a speaker should look like, or for that matter how it should be oriented, might be too timid for the Horn1. Fine, buy the version with the round driver, but when you hear the Horn1 and realize it’s that much better remember I said, “I told you so!” Conversely, those who want far better than average return on their money in performance and who are unbowed by a more athletic appearance will be drawn to this speaker.
Those who for any reason wrote off horn hybrids should reassess their position. All the reasons I discounted horns in the past have been demolished by the PureAudioProject Horn1. On my last trip to Florida to visit my parents we ate at an Italian restaurant that so exceeded our expectations that we remarked it was among the finest meals in recent memory, regardless of the ethnicity of the food. When I listen to the Horn1 my ears tell me it is one of the finest sounds to grace my listening room regardless of the “ethnicity” of the speaker, that is, the technology employed. That is one of the highest complements I have ever paid a speaker in 12 years of reviewing. It offers an absolute lock on value for the dollar to the purchaser.
You should have a clear picture of what the Horn1 offers. On the other hand, I have a conundrum. I have handled too many speakers of various technologies to believe that the first encounter with a technology, many times with a more moderately priced implementation, is the ultimate expression, the peak of performance of that category of speakers. No matter how good a sub-$10K speaker is, select others of the same technological bent at multiples more cost will outperform it, despite what rabidly enthusiastic owners and protective manufacturers might say. However, I don’t see many others that would perform comparably at the same price point, and allow me to do both Landscape and Portrait (normal) orientation so capably and seamlessly.
I currently have three directions in terms of gear procurement I am considering to allocate my funds, and for which I am selling gear. Based on the influence it has had in the Portrait (conventional) positioning alone, the PureAudioProject Horn1 sits at the top of the list. Despite the fact that I intend on scaling up my exploration of horn speakers, the Horn1 needs to stay. It is my opinion that the open baffle design of the Trio15 Horn1 is relatively rare, especially with supplemental 15” woofers to make it a truly full range speaker. The degree to which it can be configured makes it rare among horn speakers. If you plan on dropping $15K or so on a dynamic speaker with a cabinet and aesthetic considerations do not dictate your selection, you will want to seriously consider the Horn1. If you plan on spending up to $10K on a speaker of any other technology, you may wish to join me in becoming a Horn1 fan and a new devotee of horn speakers.
Copy editor: Dan Rubin
Associated Components:
Source: Salk Audio StreamPlayer Generation III with ROON player
Streaming Music Service: Tidal
DAC: Eastern Electric Minimax DSD DAC Supreme with Burson, Dexa NewClassD and Sparkos Labs Discrete Opamp Upgrade; Exogal Comet DAC and upgrade power supply, LampizatOr Big 7
Preamp: TEO Audio Liquid Preamplifier; VAC Renaissance Signature Preamplifier MkII; Cambridge Audio 840E Amps: Red Dragon S500;First Watt J2 (two); Exogal Ion PowerDAC
Integrated: none
Speakers: Legacy Audio V Speaker System; Kings Audio Kingsound King III; Legacy Audio DSW Clarity Edition; Kings Audio King Tower omnidirectional; Vapor Audio Joule White 3; PureAudioProject Trio15 TB (Tang Band) and Trio15 Voxativ and Horn versions
Subwoofers: Legacy Audio XTREME HD (2)
IC’s: TEO Liquid Splash-Rs and Splash-Rc; TEO Liquid Standard MkII; Clarity Cable Organic RCA/XLR; Snake River Audio Signature Series Interconnects; Silent Source “The Music Reference”
Speaker Cables: TEO Cable Standard Speaker; Clarity Cable Organic Speaker; Snake River Audio Signature Series Speaker Cables; Silent Source “The Music Reference” Digital Cables: Clarity Cable Organic Digital; Snake River Audio Boomslang; Silent Source “The Music Reference” USB: Verastarr Nemesis; Clarity Organic
Power Cables: Verastarr Grand Illusion; Clarity Cable Vortex; MIT Oracle ZIII; Xindak PF-Gold; Snake River Audio Signature Series; Silent Source “The Music Reference” Power Conditioning: Wireworld Matrix Power Cord Extender; Tice Audio Solo
