McIntosh C1100, C52 and C47 Preamplifiers

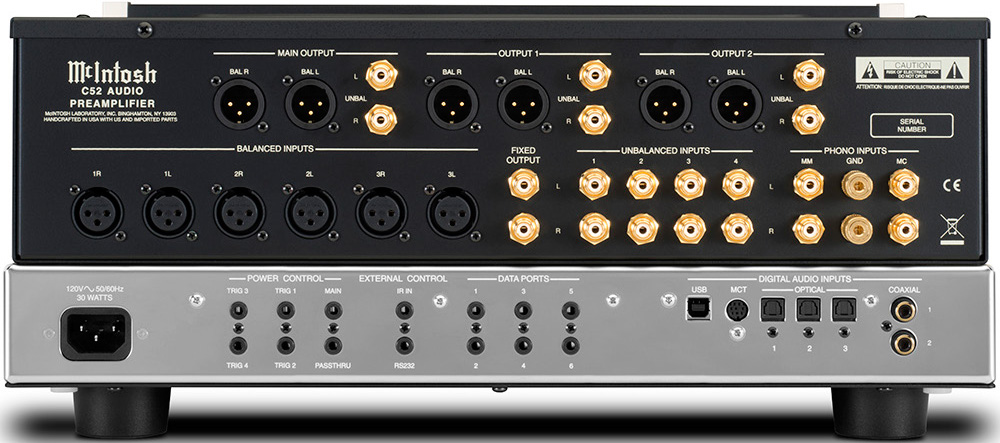

C52 Preamplifier

TOTAL HARMONIC DISTORTION
0.003%
FREQUENCY RESPONSE
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 100,000Hz
MAXIMUM VOLTS OUT (BALANCED / UNBALANCED)
16/8 V RMS
INPUT IMPEDANCE (BALANCED / UNBALANCED)
44K ohm, 22K ohm
PHONO VOLTAGE GAIN
Moving Magnet: 40dB
Moving Coil: 60dB
HIGH LEVEL VOLTAGE GAIN
To Main Output and Outputs 1 & 2: 15dB
To Fixed Output: 0dB
SIGNAL TO NOISE RATIO
100dB
HEADPHONE OUTPUT
Yes 1/4”
INPUTS BALANCED
3 Stereo
INPUTS UNBALANCED
4 Stereo + 2 Phono
VARIABLE OUTPUTS BALANCED
3 Stereo
VARIABLE OUTPUTS UNBALANCED
3 Stereo
DIGITAL USB INPUT
1 (accepts PCM signals up to 32-bit/384kHz; supports
DSD64, DSD128 & DSD256; DXD352.8kHz & DXD384kHz)
DIGITAL COAXIAL INPUT
2
DIGITAL OPTICAL INPUT
3
DIGITAL DIN (SACD) INPUT
1
PHONO MOVING MAGNET
Yes, adjustable
PHONO MOVING COIL
Yes, adjustable
INPUT LEVEL MATCH
Yes, +/- 6dB
HOME THEATER PASS THROUGH
Yes
TUBE OR SOLID STATE
Solid State
DIMENSIONS (W X H X D)
17.5” (44.45cm) x 7.6” (19.37cm) x 18” (45.72cm)
WEIGHT
27.5 lbs (12.5 kg)
